LANKELEISI | RV700 Explorer Electric Mountain Bike
FRAMESET
Frame: 6061 aluminum alloy full suspension frame
Fork: Lockable aluminum shoulder oil spring suspension large forks, travel 100 mm
Handlebar Sets: 6061 aluminum alloy, 31.8*730mm
Cranksets: Aluminum alloy crank square hole 48T
Rim: Aluminum alloy wheels
Tire: CHAOYANG 26*4.0
ELECTRONICS
Motor: 48V 1000W rear drive brushless motor, max torque 90Nm
Battery: 48V 16AH Lithium Battery, 18650 cells
Power Assist Sensor: 12-point Holzer-intensive speed sensor
LCD Display: Color LCD with speed, trip, battery, assist level, and more
Front Light: 48V LED high brightness headlights
Charger: 48V 3A charger
Throttle: Half Twist
Waterproof Grade: IP54 (waterproof for daily use, suitable for use in rain)
SPEED & RANGE
Pure Electric Mode: 45-55 km
Pedal Assist Mode: 90-120 km
Test Conditions: Fully charged, 60kg load, 25°C, 20km/h average speed on a flat road surface
GEAR SYSTEMS
Variable Speed: Shimano 7 speed
Shifting Lever: Shimano M310
Rear Derailleur: Shimano M310
Chain: KMC 7s
Freewheel: SUNSHINE 14-28T
BRAKE
Brake: ZOOM H875 power-off hydraulic disc brake
WEIGHT & LOAD
Bike Weight: 31KG (68.34lbs)
Max Bike Load: 180KG (400lbs)
LCD COLOR DISPLAY
Backlight Display: Tracks speed, mileage, power, and more
Battery Capacity: Battery level display
Odometer: Total ride mileage
Pedal-Assist Level: Pedal assistance power
Speedometer: Current speed, maximum speed, and average speed
OTHER HIGHLIGHTS
SHIMANO 7 SPEED GEAR SHIFT SYSTEM
Experience seamless and precise gear transitions with the SHIMANO 7 Speed gear shift system, ensuring optimal performance and efficiency for every riding scenario.
HYDRAULIC BRAKE
Enjoy superior stopping power and precise control with hydraulic brakes, providing reliable performance and safety in various riding conditions.
HALF TWIST THROTTLE
The half twist throttle allows you to easily and precisely control the speed of your ebike and experience a seamless accelerated ride.
1000W BRUSHLESS MOTOR
The Lankeleisi RV700 is equipped with a 48V 1000W rear brushless motor that easily accelerates to 25km/h for all-terrain riding. Riding with the use of a rear derailleur unlocks a more comfortable riding speed, even when riding in pedal assist mode.
90Nm: Max Torque
35°: Climbing Angle
48V 16AH LITHIUM BATTERY
The Lankeleisi RV700 uses a 48V 16Ah high-capacity removable battery composed of 18650 cells for long-distance riding. One charge can ride 120KM when using pedal assist, and 55KM in pure power mode. With IP54 rated waterproof, it is fearless of any splashing water.
55-120 KM (34-74 Mi): Per Charge
768Wh: Total Battery Capacity
48V 3A: Charger
4-5 hours: Fully Charged

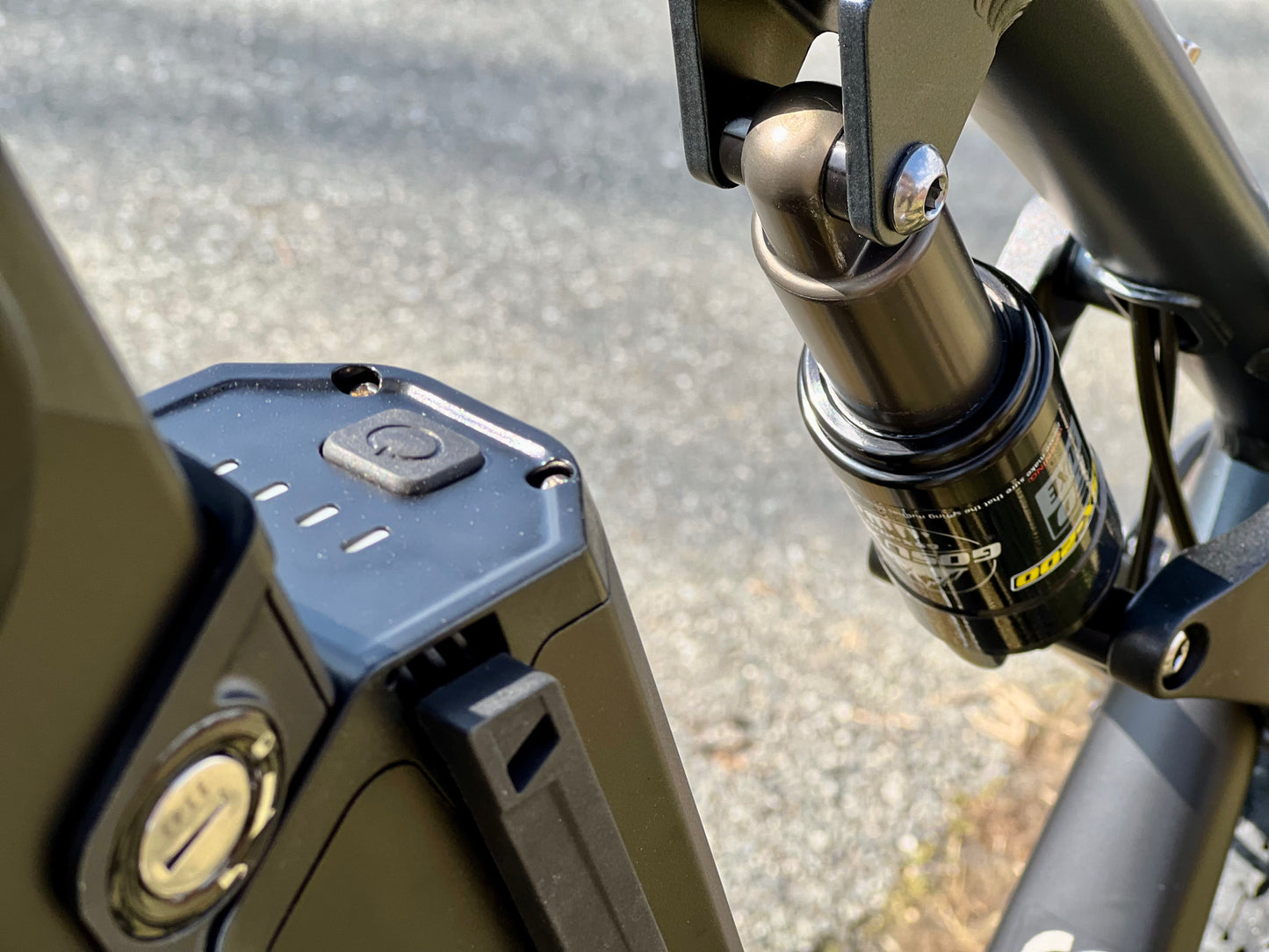

FRONT FORK SUSPENSION & REAR SUSPENSION
The Lankeleisi RV700 is equipped with a full-suspension shock system consisting of an ultra-long and strong aluminum fork suspension and rear suspension. It absorbs bumps in the road and reduces tiredness during your ride. Enjoy a comfortable off-road ride with the RV700.
100mm: Fork Travel
650 pounds: Rear Suspension
Experience the thrill of adventure and the comfort of a smooth ride with the LANKELEISI RV700 Explorer Electric Mountain Bike. Designed for all-terrain capability and long-distance performance, it's your perfect companion for exploring the great outdoors.
